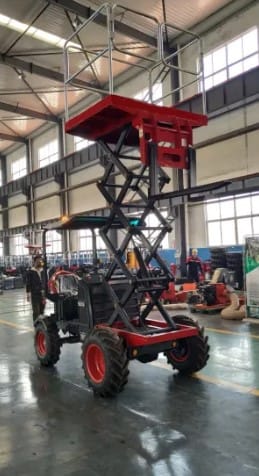

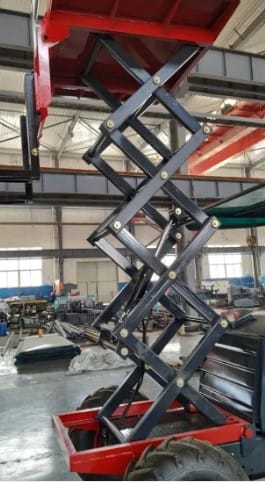

Diesel scissor lift system
Diesel off-road scissor lifting platform is a DFLIFT patented product, which is driven by diesel engine and can be used on non-paved road. Diesel scissor lift self-propelled aerial work platform, it has the function of automatic walking can under different working conditions, fast, slow walk, only one person can operate the machine when the work high above the continuous rise and fall, forward, backward, steering movements, such as more traditional hydraulic platform greatly improves the work efficiency, reduce the amount of operating personnel and labor intensity.
Rated Loading Capacity：230kg-680kg
Platform height:8m 10m 12m 14m 16m
Type:Diesel engine lift platform
Control voltage:12 V DC
Power supply: diesel engine
Diesel scissors lift as manual movement and large capacity, good stability, improve mobile and flexible, convenient operation, etc., mainly is suitable for the factory, construction site, hotel, airport, station, wharf, stadium and other high-rise building high-altitude equipment installation and maintenance and cleaning and hygiene, products with independent power gasoline engines or diesel engine. Diesel scissors lift can be used for power failures or on-site power facilities and overhead line, hoisting machinery maintenance, etc. Diesel portable scissors hoist is an ideal equipment to ensure work safety and improve work efficiency. Department as a manual movement and large capacity, good stability, improve mobile and flexible, convenient operation, etc,. Diesel scissors lift mainly is suitable for the factory, construction site, hotel, airport, station, wharf, stadium and other high-rise building high-altitude equipment installation and maintenance and cleaning and hygiene, products with independent power gasoline engines or diesel engines, diesel portable scissor lift can be used for power failures or on-site power facilities and overhead line, hoisting machinery maintenance, etc. Diesel scissors lift is an ideal equipment to ensure work safety and improve work efficiency.
Features:
1, Practicality: Starting from the reality of nursery workers and farms, it can meet different working conditions.

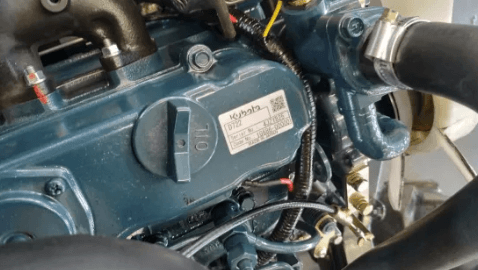

2, It can with a Kubota diesel engine or Electric battery .
3, Selection of water pumps and other supporting equipment, can with Pesticide spraying, irrigation, water spraying and other operations.
4, Rear towing configuration, can tow 2 tons.More usefull in a farm or garden.
5, According to different conditions, can attach different buckets, load capacity reach 1.5-2.2 ton
6, Import Electrical control system, make the machine more stable for working .
7, Differential + differential lock, better adapted to muddy roads.
8,Operators can control the height of lifting platform and flexibly adapt to different operating heights.
Type Platform size（mm） Capacity（kg） Lifting height（m） Overall size（mm） Weight （kg） DFSJYC0.5-6 2100*830 500 6 2250*950*1200 880 DFSJYC 0.5-7 2100*830 500 6.8 2250*950*1280 970 DFSJYC 0.5-8 2100*930 500 8 2250*1060*1380 1050 DFSJYC 0.5-9 2100*930 500 9 2250*1060*1500 1165 DFSJYC 0.5-10 2100*1230 500 10 2250*1350*1530 1360 DFSJYC 0.5-11 2100*1230 500 11 2250*1350*1650 1400 DFSJYC0.5-12 2550*1530 500 12 2796*1670*1750 2260 DFSJYC 0.5-14 2812*1530 500 14 3067*1730*1810 2486 DFSJYC 0.3-16 2812*1600 300 16 3067*1810*2080 3063 DFSJYC 0.3-18 3070*1600 300 18 3321*1810*2080 3900 DFSJYC 1.0-4 2100*1200 1000 4 2250*1350*1180 1250 DFSJYC 1.0-6 2100*1200 1000 6 2250*1350*1300 1400 DFSJYC 1.0-8 2100*1200 1000 8 2250*1350*1420 1585 DFSJYC 1.0-10 2100*1200 1000 10 2250*1350*1530 1700 DFSJYC 1.0-12 2550*1530 1000 12 2796*1670*1750 2560 DFSJYC1.0-14 2812*1600 1000 14 3067*1810*1900 3230 DFSJYC 1.5-6 2100*1530 1500 6 2250*1750*1530 1780 DFSJYC 1.5-8 2100*1530 1500 8 2250*1750*1690 2070 DFSJYC 1.5-10 2100*1530 1500 10 2250*1750*1850 2250 DFSJYC 1.5-12 2550*1530 1500 12 2796*1762*1850 2900 DFSJYC 1.5-14 2816*1600 1500 14 3045*1852*1960 3400 DFSJYC 2.0-6 2100*1530 2000 6 2250*1750*1530 1780 DFSJYC 2.0-8 2100*1530 2000 8 2250*1750*1690 2070 DFSJYC2.0-10 2100*1530 2000 10 2250*1750*1850 2250 DFSJYC 2.0-12 2550*1600 2000 12 2796*1852*1954 3200 DFSJYC2.0-14 2816*1600 2000 14 3067*1852*2230 3900 DFSJYC 03A 1150*700 240 3 1300*760*1950 545 DFSJYC 03 1280*700 240 3 1440*760*1830 535 DFSJYC 04 1280*700 240 4 1440*760*1950 590
