Scissor lift table
Small scissor lift is small lifting machinery, mainly used for a small range of lifting, items extraction, placement, but also used for handling small valuables.
The product appearance is generous and beautiful, the structure is firm, the stability is safe and reliable, the internal performance and the service life have reached the same equipment advanced level. At present, the mainstream of the market is hydraulic driven lifting, which is widely used in logistics and transportation, warehouse management, library, supermarket, and ordinary small equipment manufacturing industry due to its small size and convenient movement.

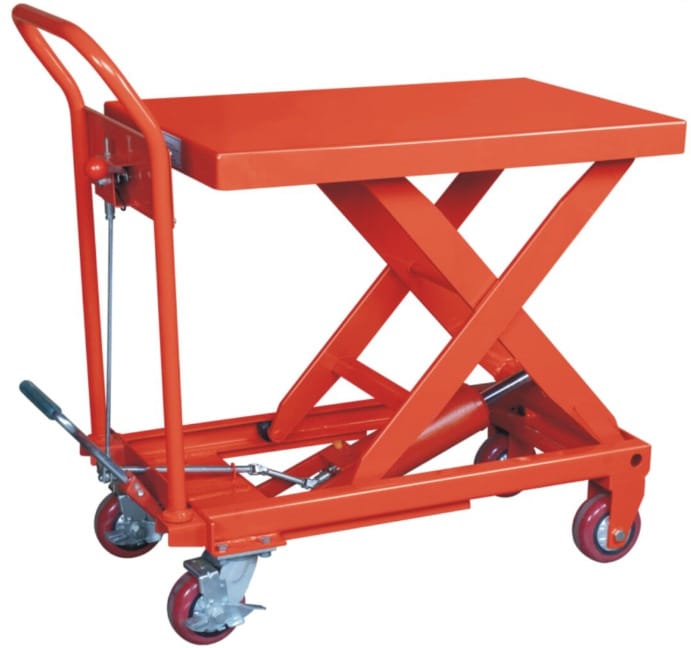

Manual scissor lift for sale
Capacity: 150~2000kg
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Lifting methods: Foot pedal to lift up, electric lift
Travel methods: manual push
Table: can add the roller for rolling
Model Platform Size Lifting Range Lifting Capacity L*W*H PT150 700*450*35 210-720mm 150kg PT300 810*500*50 280-900mm 300kg PT500 810*500*50 280-900mm 500kg PT1000 1000*510*55 415-1000mm 1000kg PTS150 700*450*35 305-1260mm 150kg PTS350 905*500*50 350-1300mm 350kg PTS500 905*500*50 360-1500mm 500kg PTS800 1200*610*58 450-1500mm 800kg PTS1000 1200*610*80 500-1700mm 1000kg PTS350 900*700*50 350-1580mm 350kg PTD500 1600*610*80 280-900mm 500kg PTD1000 1200*610*80 380-1000mm 1000kg PTD1500 1200*610*80 380-1000mm 1500kg PTD2000 1200*610*80 380-1000mm 2000kg

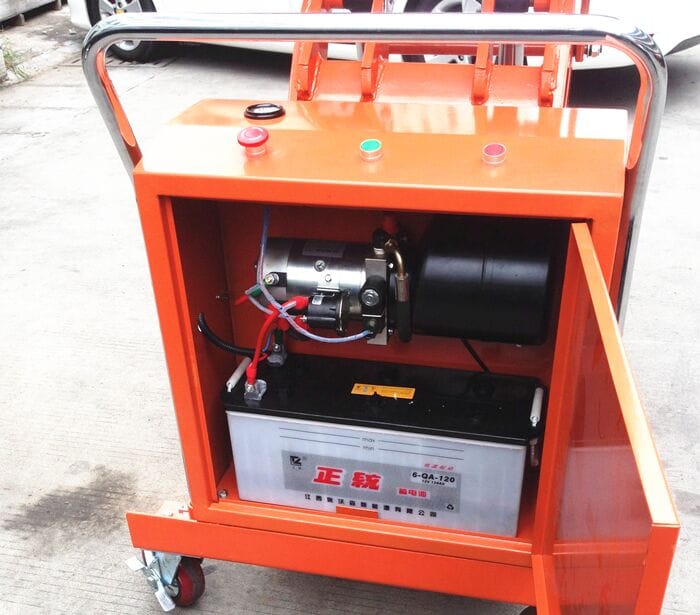

Electric scissor lift table
D
Capacity: 150/200kg/300kg/500kg/1 ton /2ton hydraulic scissor lift table
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Walking hand push, lifting electric
Model Platform Size Lifting Range Lifting Capacity L*W*H PT150 700*450*35 210-720mm 150kg PT300 810*500*50 280-900mm 300kg PT500 810*500*50 280-900mm 500kg PT1000 1000*510*55 415-1000mm 1000kg PTS150 700*450*35 305-1260mm 150kg PTS350 905*500*50 350-1300mm 350kg PTS500 905*500*50 360-1500mm 500kg PTS800 1200*610*58 450-1500mm 800kg PTS1000 1200*610*80 500-1700mm 1000kg PTS350 900*700*50 350-1580mm 350kg PTD500 1600*610*80 280-900mm 500kg PTD1000 1200*610*80 380-1000mm 1000kg PTD1500 1200*610*80 380-1000mm 1500kg PTD2000 1200*610*80 380-1000mm 2000kg

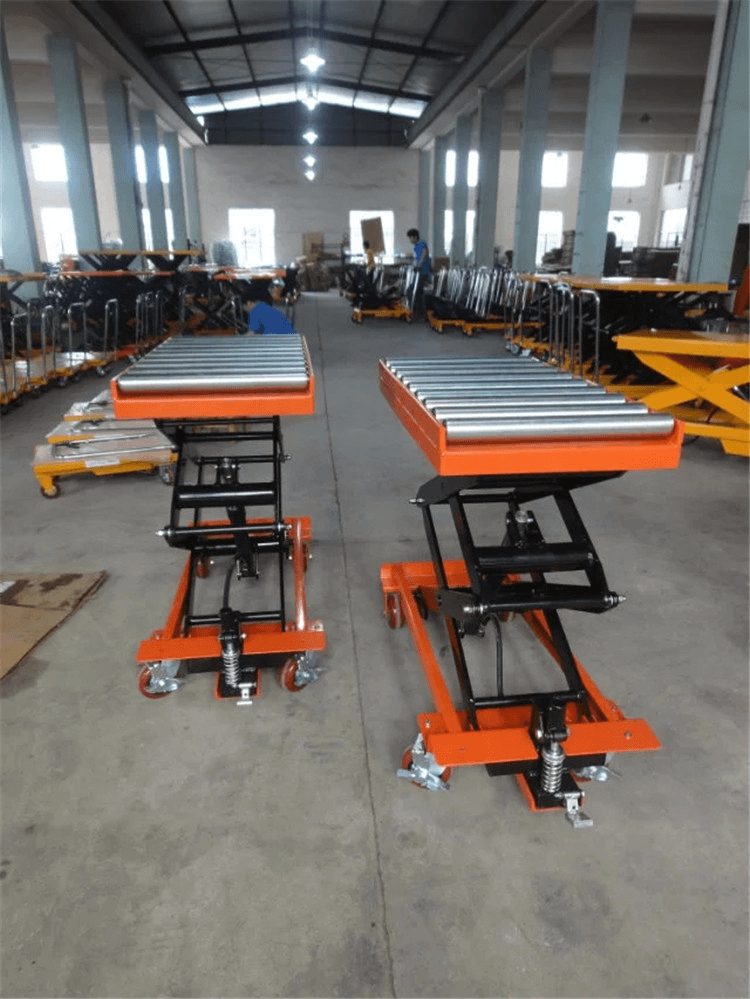

scissor lift table roller top
lift capacity:150kg-2 ton
lift height:500-1300
Mode of operation: manual / electric
Hand-pushed hydraulic scissor lift table made of high-strength steel, reasonable design and structure, safe and stable, reliable, internal safety valve, fully sealed cylinder, manual control of hydraulic system lifting, easy to operate. Equipped with nylon guide wheel to save the operator's physical strength, and can protect the load wheel and pallet load wheel. Unique hydraulic pump design, simple pump for pipeline loading and unloading operation to maintain an ideal height and design; The unique ergonomic design makes the operator comfortable to operate.
Model Platform Size Lifting Range Lifting Capacity L*W*H PT150 700*450*35 210-720mm 150kg PT300 810*500*50 280-900mm 300kg PT500 810*500*50 280-900mm 500kg PT1000 1000*510*55 415-1000mm 1000kg PTS150 700*450*35 305-1260mm 150kg PTS350 905*500*50 350-1300mm 350kg PTS500 905*500*50 360-1500mm 500kg PTS800 1200*610*58 450-1500mm 800kg PTS1000 1200*610*80 500-1700mm 1000kg PTS350 900*700*50 350-1580mm 350kg PTD500 1600*610*80 280-900mm 500kg PTD1000 1200*610*80 380-1000mm 1000kg PTD1500 1200*610*80 380-1000mm 1500kg PTD2000 1200*610*80 380-1000mm 2000kg
100kg 200kg 300kg scissor lift table Features
1, lightweight, beautiful appearance. Movable scissor lift table can be easily pushed by one person
2. Easy operation and controllable direction
3. Source of scissor lift table manufacturers, affordable price
4. Wheels with brakes
Why did you choose our manual scissor lift table?
1.We have 15 years production experience and 10 years export experience
2. Cheap price and good quality from China.
3. Global CIF (cost, insurance and freight) price
4. It is widely used
If you have any requirements, please contact us, we have a professional team to serve you 24 hours a day
