Heavy Duty Scissor Lift Dealer
The heavy lifting platform is mainly used for the assembly of large machinery and the assembly line production, which is convenient to operate and greatly improves the production efficiency.

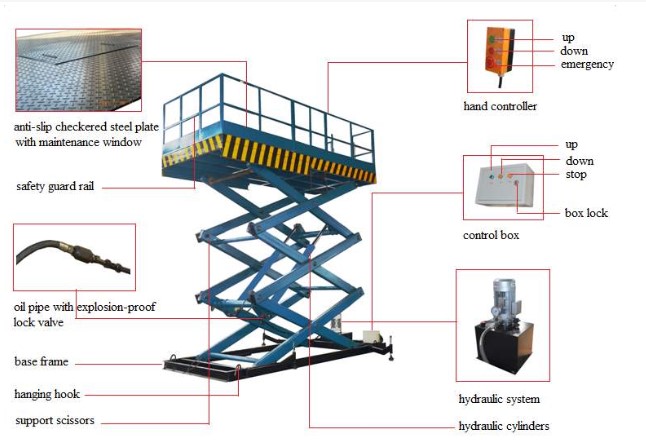

Heavy-duty scissor lift can be customized for customers, to provide a wealth of options. The heavy-duty scissor lift shear arm frame made of high strength manganese steel, high fatigue strength. It has standard configuration of emergency descent device, emergency stop device and other safety functions.
Rated load: 8-60 tons
Maximum height: 1.5-4m
Table size: can be customized
Power supply: three-phase
Lifting speed:4-6m/min
Certification: ISO9001:2008 CE Certificate
The heavy lifting platform is a high-capacity lift. These heavy lifting platform feature dual safety restraint maintenance bars and positive stops on all four corners for maximum roll over capacity. These units also feature dual safety restraint maintenance bars and cylinder rod end protectors. These models are supplied with standard straight toe guards for surface mounting. If pit mounting is required, please specify when ordering, and beveled toe guards will be supplied at no charge. Call Beacon for optional electric toe guard pricing.
Model Table size Travel height Min. Height Rated capacity Overall size (LxWxH) SJG2-3.5 2000x1500mm 3500mm 560mm 2000kg 2000X1500x560mm SJG5-5 2800x2000mm 5000mm 1020mm 5000kg 2800x2000x1020mm SJG2.5-4 3000x2400mm 4000mm 770mm 2500kg 3000x2400x770mm SJG1-2.9 1400x750mm 2900mm 510mm 3000kg 1400x750x510mm SJG1-6 1900x1100mm 6000mm 1100mm 60000kg 1900x1100x1100mm SJG1.5-3.8 2200x2000mm 3800mm 700mm 1500kg 2200x2000x700mm SJG0.8-3.5 1800x1200mm 3500mm 800mm 800kg 1800x1200x800mm SJG2-2 3250x2130mm 2000mm 400mm 10000kg 3250x2130x400mm
FAQ:
Q: What about the quality of the Heavy-duty scissor lift?
A: Heavy-duty scissor lift are CE approved, and we have five inspection steps before shipment:
- Inspect the raw material in accordance with ISO9001;
- Strict inspection in the whole production process;
- Load limit test when assembling finished;
- 100% strict inspection of products before shipment;
- If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: Heavy-duty scissor lift carry one-year warranty.
Q: What's the lead-time?
A: Normally 15 days.
If you order more than 5 items mixed in one container, it will be 20 days.
If you order one item in one container, it will be 20 days.
