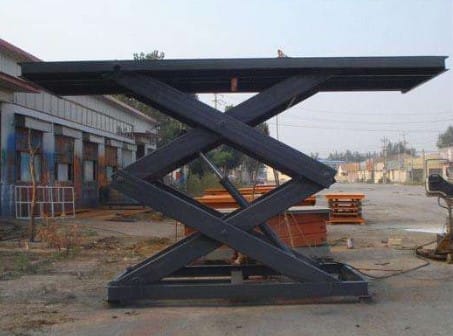

2 meter scissor lift manufacture
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 1000mm
Type: Electric hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
2 meter scissor lift is a special hydraulic lifting platform, used for the transport of goods elevator between floors. Products are mainly used for workshop, warehouse and various workplace transport. Three-dimensional garage, underground garage, elevator height, etc., product hydraulic system is equipped with anti-fall, overload safety protection device, can set the operation button, realize the multi-point control of each floor and lifting platform. 2 meter scissor lift structure is strong, large load, smooth lifting, easy installation and maintenance, is economical and practical low floor replacement elevator ideal cargo transport equipment. A few decades ago, people probably had never heard of mechanical devices with hydraulic lifts. Elevators and escalators did not exist. In the past, people had to do all kinds of heavy manual labor. With the rapid growth and development of China's economy, a large number of work using machinery, not only can reduce the labor force, but also can improve the work efficiency.
Model capacity Min. height Lifting range Platform size Motor power Self-weight SJG0.3-3 300 650 3000 200*1200 1.1 780 SJG0.5-5 500 850 5000 2000*1000 2.2 1200 SJG1-3.3 1000 840 3300 1900*1500 3 1300 SJG1-4.3 1000 860 4300 2500*2000 3 2500 SJG1-6 1000 1230 6000 2200*1500 2.2 2500 SJG2-3.5 2000 1000 3500 2200*1500 3 1800 SJG3-4.5 3000 1060 4500 2200*1800 4 2200 SJG1.5-3 1500 820 3000 1800*1200 2.2 1480 SJG2-4.8 2000 980 4800 2000*2000 4 2200 SJG2-6 2000 1150 6000 2200*2000 5 2800 SJG1-8 1000 1320 8000 2200*1800 4 3000 SJG2-9 2000 1400 9000 2500*1800 7.5 3800 SJG2-11 2000 1900 11000 2500*1500 7.5 4100 SJG3-10 3000 2100 10000 2500*1500 7.5 4300
2 meter scissor lift main characteristics:
- 2 meter scissor lift is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors
- 2 meter scissor lift is characterized by great loading capacity.
- Hydraulic lift system Steady ascending and descending
- 2 meter scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
- The limit switch system helps the lift to stop at accurate position.
- The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of cargo.
- Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
- Control system adopt elevator control system, very convenient and safety.
- Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.
