Mobile Scissor Lift System
The mobile scissor lift is a widely used aerial working equipment.
The mobile scissor lift is suitable for various industries high altitude equipment installation, inspection, maintenance, decoration and other mobile high-altitude work.
The mobile scissor lift mechanical structure makes the platform very stable after rising.
The mobile scissor lift and large bearing capacity make the high-altitude working platform more suitable for multiple people, making the high-altitude working more efficient and safe.

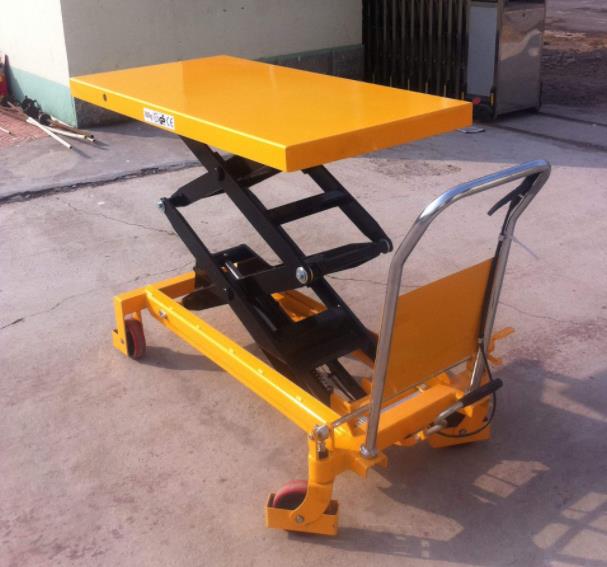

Manual mobile scissor lift
Capacity: 150~2000kg
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Lifting methods: Foot pedal to lift up
Travel methods: manual push
Table: can add the roller for rolling
Our manual mobile scissor lift introduces advanced technology from abroad. Our mobile scissor lift has simple and compact structure; DFLIST mobile scissor lift which smaller and larger heights compared to similar products with the same deadweight; And scissor lifts adopt anti-clipping fork design to prevent cutting with overload protection function, effectively avoid overload use.
Model Platform Size Lifting Range Lifting Capacity L*W*H PT150 700*450*35 210-720mm 150kg PT300 810*500*50 280-900mm 300kg PT500 810*500*50 280-900mm 500kg PT1000 1000*510*55 415-1000mm 1000kg PTS150 700*450*35 305-1260mm 150kg PTS350 905*500*50 350-1300mm 350kg PTS500 905*500*50 360-1500mm 500kg PTS800 1200*610*58 450-1500mm 800kg PTS1000 1200*610*80 500-1700mm 1000kg PTS350 900*700*50 350-1580mm 350kg

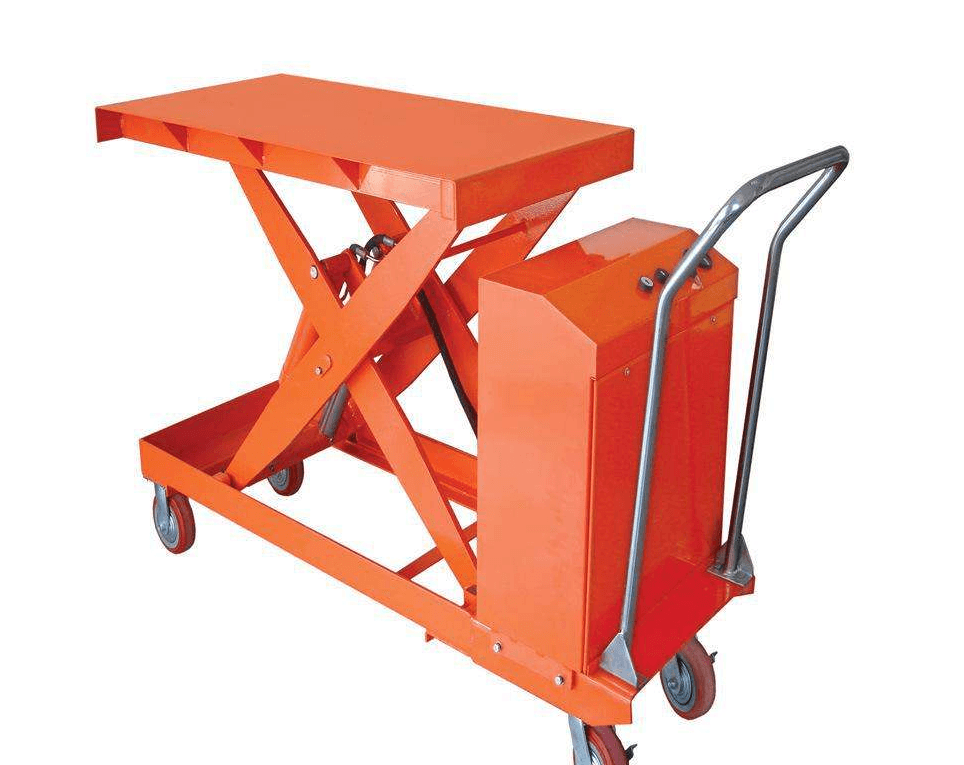

Electric drive mobile scissor lift
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Lifting methods: electric lift
Travel methods: manual push
Table: can add the roller for rolling
The battery operated scissor lift table is a multi-functional lifting loading and unloading mechanical equipment. The mechanical structure of the portable scissor lift table is made of lifting forks, which makes the lifting platform have higher stability. Our mobile scissor lift lifts cargo very easily. Although the scissor lift is light, it has sturdy construction. DFlifts mobile scissor lift has two brakes on the drive wheel enhance safety. Most importantly, our mobile scissor lift can meet European en 1570:1999 safety standards. We choose European original import pump station DC 700W for our scissor lift. Our scissor lifts adopt high quality battery with a separate automatic charger.
PTD500 1600*610*80 280-900mm 500kg PTD1000 1200*610*80 380-1000mm 1000kg PTD1500 1200*610*80 380-1000mm 1500kg PTD2000 1200*610*80 380-1000mm 2000kg

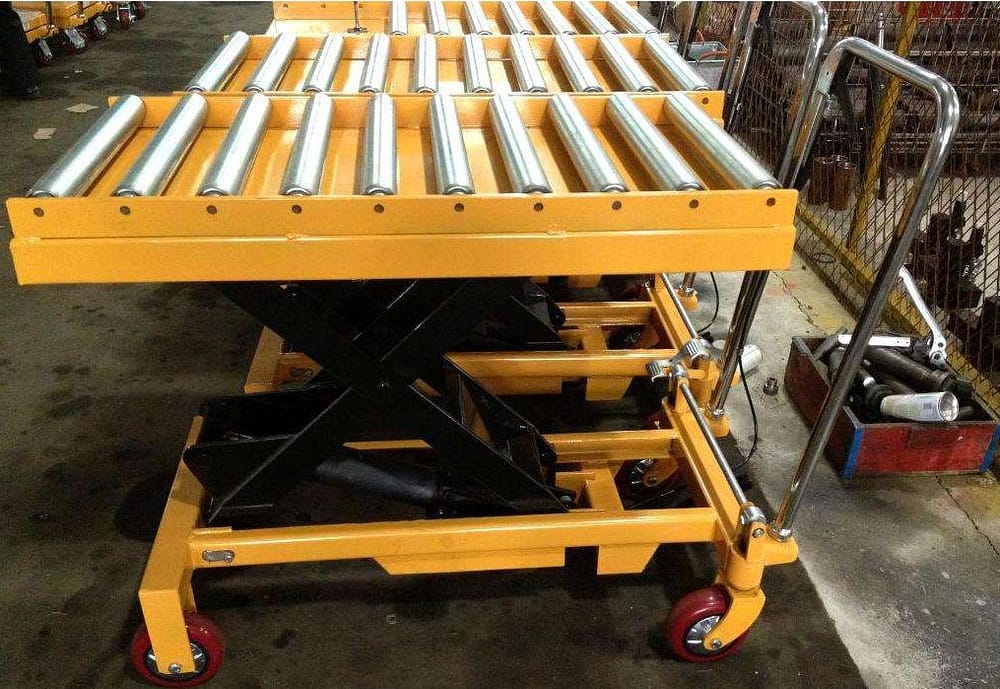

Manual mobile scissor lift with roller
Capacity: 150~2000kg
Lifting height: 210-1700mm
Driving mode: Manual Type
Frame material: Q235b
Lifting methods: electric lift
Travel methods: manual push
Table: Roller for rolling
Our mobile scissor lift is convenient and safe -- it can be used as an ideal material transportation platform on the assembly line. Our mobile scissor lift has pedal-operated hydraulic pedal - lifts the surface to any desired height. Our mobile scissor lift is simple operation -- the pinching drop mode can accurately control the table drop. Our mobile scissor lift has overload valve -- effectively protects the safety of operators and materials. This type scissor lift has roller for rolling. So it is convenient for loading and unloading products. And our roller is smooth to roll and push. So we can save much time to operate.
Model Platform Size Lifting Range Lifting Capacity L*W*H PT150 700*450*35 210-720mm 150kg PT300 810*500*50 280-900mm 300kg PT500 810*500*50 280-900mm 500kg PT1000 1000*510*55 415-1000mm 1000kg PTS150 700*450*35 305-1260mm 150kg PTS350 905*500*50 350-1300mm 350kg PTS500 905*500*50 360-1500mm 500kg PTS800 1200*610*58 450-1500mm 800kg PTS1000 1200*610*80 500-1700mm 1000kg PTS350 900*700*50 350-1580mm 350kg PTD500 1600*610*80 280-900mm 500kg PTD1000 1200*610*80 380-1000mm 1000kg PTD1500 1200*610*80 380-1000mm 1500kg PTD2000 1200*610*80 380-1000mm 2000kg

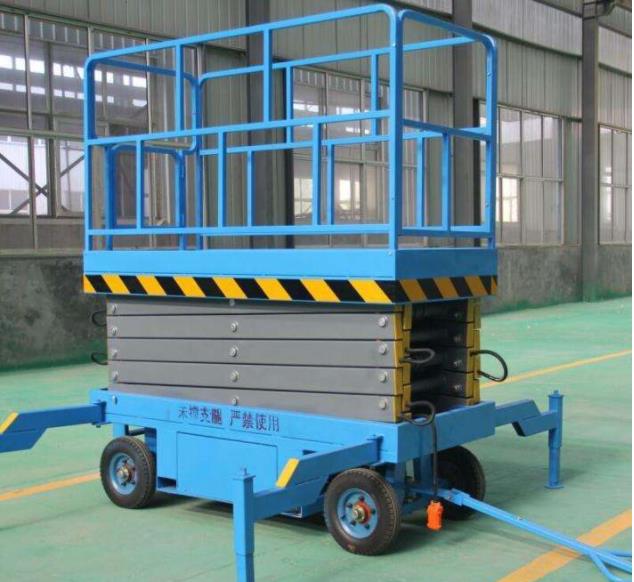

Electric mobile scissor lift
Capacity: 200~2000kg
Lifting height: 4-16m
Driving mode: hydraulic drive
Power supply: storage battery or three-phase current
Travel methods: electric power
Our electric scissor lift is very convenient to use. Electro-hydraulic proportional control can modulate hydraulic parameters according to electric input signals to achieve fast, stable and accurate control of the walking and lifting of equipment. After lifting of mobile scissor lift, the drive system loses power, so as to avoid the danger to high-altitude workers caused by the wrong operation of ground personnel; The clever design of the auxiliary wheel can effectively share the pressure of the driving wheel and make the steering more flexible. The suction cup type leveling legs and the level indicator always provide the platform with solid and steady ground support, even on slightly uneven ground. The scissor lift platform and cylinder piston double-stroke switch limit provides double guarantee for raising the limit, and the scissor lift platform is very stable when it reaches the highest point. When power is lost unexpectedly, emergency descending device is opened and the scissor lift platform slowly returns to the initial position. The high pressure steel tubing can withstand the pressure far more than the maximum pressure of the scissor lift hydraulic system, which guarantees the safety of the tubing. The hydraulic system is equipped with valves to prevent pipeline rupture, so that even if the pipeline breaks unexpectedly, the platform can be prevented from falling down rapidly.
Type Platform size（mm） Capacity（kg） Lifting height（m） Overall size（mm） Weight （kg） DFSJY0.5-6 2100*830 500 6 2250*950*1200 880 DFSJY 0.5-7 2100*830 500 6.8 2250*950*1280 970 DFSJY 0.5-8 2100*930 500 8 2250*1060*1380 1050 DFSJY 0.5-9 2100*930 500 9 2250*1060*1500 1165 DFSJY 0.5-10 2100*1230 500 10 2250*1350*1530 1360 DFSJY 0.5-11 2100*1230 500 11 2250*1350*1650 1400 DFSJY 0.5-12 2550*1530 500 12 2796*1670*1750 2260 DFSJY 0.5-14 2812*1530 500 14 3067*1730*1810 2486 DFSJY 0.3-16 2812*1600 300 16 3067*1810*2080 3063 DFSJY 0.3-18 3070*1600 300 18 3321*1810*2080 3900 DFSJY 1.0-4 2100*1200 1000 4 2250*1350*1180 1250 DFSJY 1.0-6 2100*1200 1000 6 2250*1350*1300 1400 DFSJY 1.0-8 2100*1200 1000 8 2250*1350*1420 1585 DFSJY 1.0-10 2100*1200 1000 10 2250*1350*1530 1700 DFSJY 1.0-12 2550*1530 1000 12 2796*1670*1750 2560 DFSJY 1.0-14 2812*1600 1000 14 3067*1810*1900 3230 DFSJY 1.5-6 2100*1530 1500 6 2250*1750*1530 1780 DFSJY 1.5-8 2100*1530 1500 8 2250*1750*1690 2070 DFSJY 1.5-10 2100*1530 1500 10 2250*1750*1850 2250 DFSJY 1.5-12 2550*1530 1500 12 2796*1762*1850 2900 DFSJY 1.5-14 2816*1600 1500 14 3045*1852*1960 3400 DFSJY 2.0-6 2100*1530 2000 6 2250*1750*1530 1780 DFSJY 2.0-8 2100*1530 2000 8 2250*1750*1690 2070 DFSJY 2.0-10 2100*1530 2000 10 2250*1750*1850 2250 DFSJY 2.0-12 2550*1600 2000 12 2796*1852*1954 3200 DFSJY 2.0-14 2816*1600 2000 14 3067*1852*2230 3900 DFSJY 03A 1150*700 240 3 1300*760*1950 545 DFSJY 03 1280*700 240 3 1440*760*1830 535 DFSJY 04 1280*700 240 4 1440*760*1950 590

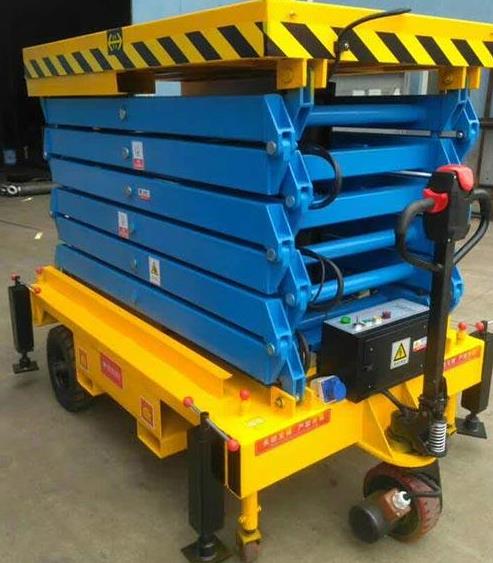

Electric power mobile lifting platform
Capacity: 200~2000kg
Lifting height: 4-16m
Driving mode: hydraulic drive
Power supply: storage battery or three-phase current
Travel methods: Electric power
This type mobile scissor lift has electric power to assist drive of the platform. Electric power walking allows the scissor lift to move over a shorter distance, without the need for traction;
According to ergonomic design "belly switch" can easily achieve the emergency stop control of the mobile scissor lift. Charging indicator light, low voltage alarm timely feedback battery working state, intelligent charger to provide charging protection; The heavy body makes the scissor lift very suitable for outdoor climbing operations, strong wind resistance, and the super-large load can meet the need to carry heavy auxiliary tools of many people working at high altitude;
Pull-out battery boxes make battery maintenance extremely simple. The solid polyurethane driving wheel and auxiliary wheel, together with the special inflatable wheel of the high-altitude working platform, make the mobile scissor lift move smoothly, and the tire itself has strong wear resistance.
Type Platform size（mm） Capacity（kg） Lifting height（m） Overall size（mm） Weight （kg） DFSJY0.5-6 2100*830 500 6 2250*950*1200 880 DFSJY 0.5-7 2100*830 500 6.8 2250*950*1280 970 DFSJY 0.5-8 2100*930 500 8 2250*1060*1380 1050 DFSJY 0.5-9 2100*930 500 9 2250*1060*1500 1165 DFSJY 0.5-10 2100*1230 500 10 2250*1350*1530 1360 DFSJY 0.5-11 2100*1230 500 11 2250*1350*1650 1400 DFSJY 0.5-12 2550*1530 500 12 2796*1670*1750 2260 DFSJY 0.5-14 2812*1530 500 14 3067*1730*1810 2486 DFSJY 0.3-16 2812*1600 300 16 3067*1810*2080 3063 DFSJY 0.3-18 3070*1600 300 18 3321*1810*2080 3900 DFSJY 1.0-4 2100*1200 1000 4 2250*1350*1180 1250 DFSJY 1.0-6 2100*1200 1000 6 2250*1350*1300 1400 DFSJY 1.0-8 2100*1200 1000 8 2250*1350*1420 1585 DFSJY 1.0-10 2100*1200 1000 10 2250*1350*1530 1700 DFSJY 1.0-12 2550*1530 1000 12 2796*1670*1750 2560 DFSJY 1.0-14 2812*1600 1000 14 3067*1810*1900 3230 DFSJY 1.5-6 2100*1530 1500 6 2250*1750*1530 1780 DFSJY 1.5-8 2100*1530 1500 8 2250*1750*1690 2070 DFSJY 1.5-10 2100*1530 1500 10 2250*1750*1850 2250 DFSJY 1.5-12 2550*1530 1500 12 2796*1762*1850 2900 DFSJY 1.5-14 2816*1600 1500 14 3045*1852*1960 3400 DFSJY 2.0-6 2100*1530 2000 6 2250*1750*1530 1780 DFSJY 2.0-8 2100*1530 2000 8 2250*1750*1690 2070 DFSJY 2.0-10 2100*1530 2000 10 2250*1750*1850 2250 DFSJY 2.0-12 2550*1600 2000 12 2796*1852*1954 3200 DFSJY 2.0-14 2816*1600 2000 14 3067*1852*2230 3900 DFSJY 03A 1150*700 240 3 1300*760*1950 545 DFSJY 03 1280*700 240 3 1440*760*1830 535 DFSJY 04 1280*700 240 4 1440*760*1950 590

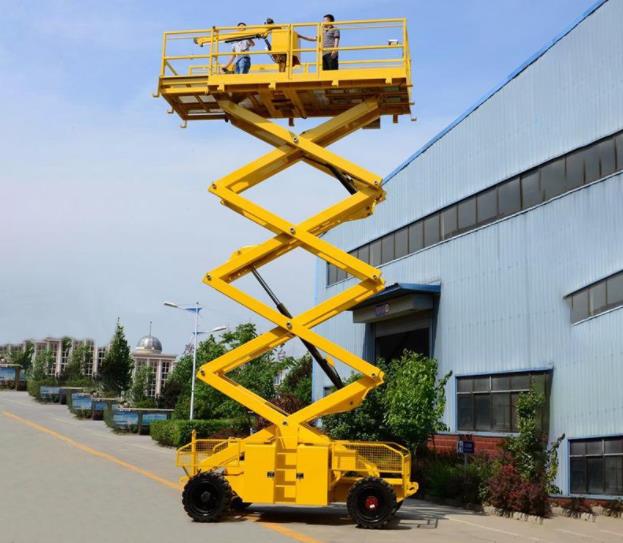

Cross-country type mobile scissor lift
Capacity: 200~2000kg
Lifting height: 4-16m
Driving mode: hydraulic drive
Power supply: diesel oil, storage battery, three-phase current
Wheel type: Especially for outdoors surroundings
The newly upgraded operating system is produced in accordance with strict standards, so that the cross-country type mobile scissor lift is more reliable and complete, and the customer needs are fully met with higher quality. Super horsepower design, provide extraordinary traction to climb, more efficient over uneven or rough areas of the ground, flexible operation and strong bearing capacity to make the cross-country type mobile scissor lift faster to the site and complete the work. The cross-country type mobile scissor lift can be driven at full height while the extension table is fully expanded, with cross-symmetric four-wheel drive (4WD) system, up to 50% climbing ability, and articulated railing system, which fully reflects the working performance.
Type Platform size（mm） Capacity（kg） Lifting height（m） Overall size（mm） Weight （kg） DFSJYYY0.5-6 2100*830 500 6 2250*950*1200 880 DFSJYYY 0.5-7 2100*830 500 6.8 2250*950*1280 970 DFSJYYY 0.5-8 2100*930 500 8 2250*1060*1380 1050 DFSJYYY 0.5-9 2100*930 500 9 2250*1060*1500 1165 DFSJYYY 0.5-10 2100*1230 500 10 2250*1350*1530 1360 DFSJYYY 0.5-11 2100*1230 500 11 2250*1350*1650 1400 DFSJYYY 0.5-12 2550*1530 500 12 2796*1670*1750 2260 DFSJYYY 0.5-14 2812*1530 500 14 3067*1730*1810 2486 DFSJYYY 0.3-16 2812*1600 300 16 3067*1810*2080 3063 DFSJYYY 0.3-18 3070*1600 300 18 3321*1810*2080 3900 DFSJYYY 1.0-4 2100*1200 1000 4 2250*1350*1180 1250 DFSJYYY 1.0-6 2100*1200 1000 6 2250*1350*1300 1400 DFSJYYY 1.0-8 2100*1200 1000 8 2250*1350*1420 1585 DFSJYYY 1.0-10 2100*1200 1000 10 2250*1350*1530 1700 DFSJYYY 1.0-12 2550*1530 1000 12 2796*1670*1750 2560 DFSJYYY 1.0-14 2812*1600 1000 14 3067*1810*1900 3230 DFSJYYY 1.5-6 2100*1530 1500 6 2250*1750*1530 1780 DFSJYYY 1.5-8 2100*1530 1500 8 2250*1750*1690 2070 DFSJYYY 1.5-10 2100*1530 1500 10 2250*1750*1850 2250 DFSJYYY 1.5-12 2550*1530 1500 12 2796*1762*1850 2900 DFSJYYY 1.5-14 2816*1600 1500 14 3045*1852*1960 3400 DFSJYYY 2.0-6 2100*1530 2000 6 2250*1750*1530 1780 DFSJYYY 2.0-8 2100*1530 2000 8 2250*1750*1690 2070 DFSJYYY 2.0-10 2100*1530 2000 10 2250*1750*1850 2250 DFSJYYY 2.0-12 2550*1600 2000 12 2796*1852*1954 3200 DFSJYYY 2.0-14 2816*1600 2000 14 3067*1852*2230 3900 DFSJYYY 03A 1150*700 240 3 1300*760*1950 545 DFSJYYY 03 1280*700 240 3 1440*760*1830 535 DFSJYYY 04 1280*700 240 4 1440*760*1950 590

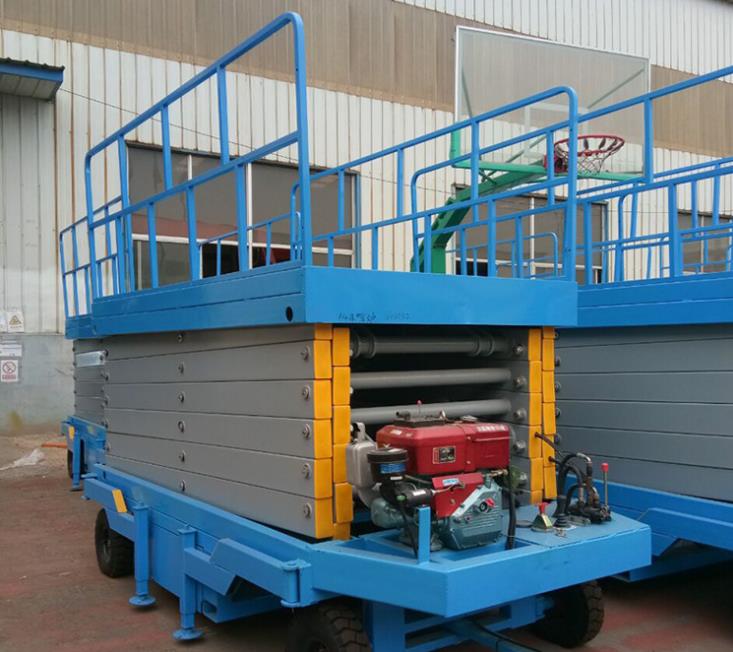

Diesel mobile scissor lift
Capacity: 200~2000kg
Lifting height: 4-16m
Driving mode: hydraulic drive
Power supply: diesel oil
Travel methods: Electric power
Diesel mobile scissor lift as a manual mobile and has a large capacity, good stability and lifting mobile flexible and convenient operation etc., mainly is suitable for the factory, construction site, hotel, airport, station, wharf, stadium and other high-altitude equipment installation and maintenance of tall buildings and clean sanitation, products with independent power gasoline engine or diesel engine, can be used in power failure or the field electric power facilities and overhead pipelines, lifting machinery maintenance, etc. Diesel mobile scissor lift is an ideal equipment to ensure the safety of work and improve work efficiency. Department as a manual mobile and has a large capacity, good stability and lifting mobile flexible and convenient operation etc., mainly is suitable for the factory, construction site, hotel, airport, station, wharf, stadium and other high-altitude equipment installation and maintenance of tall buildings and clean sanitation, products with independent power gasoline engine or diesel engine, diesel mobile scissor lift can be used in power failure or the field electric power facilities and overhead pipelines, lifting machinery maintenance, etc. Diesel mobile scissor lift is an ideal equipment to ensure the safety of work and improve work efficiency.
Type Platform size（mm） Capacity（kg） Lifting height（m） Overall size（mm） Weight （kg） DFSJYC0.5-6 2100*830 500 6 2250*950*1200 880 DFSJYC 0.5-7 2100*830 500 6.8 2250*950*1280 970 DFSJYC 0.5-8 2100*930 500 8 2250*1060*1380 1050 DFSJYC 0.5-9 2100*930 500 9 2250*1060*1500 1165 DFSJYC 0.5-10 2100*1230 500 10 2250*1350*1530 1360 DFSJYC 0.5-11 2100*1230 500 11 2250*1350*1650 1400 DFSJYC0.5-12 2550*1530 500 12 2796*1670*1750 2260 DFSJYC 0.5-14 2812*1530 500 14 3067*1730*1810 2486 DFSJYC 0.3-16 2812*1600 300 16 3067*1810*2080 3063 DFSJYC 0.3-18 3070*1600 300 18 3321*1810*2080 3900 DFSJYC 1.0-4 2100*1200 1000 4 2250*1350*1180 1250 DFSJYC 1.0-6 2100*1200 1000 6 2250*1350*1300 1400 DFSJYC 1.0-8 2100*1200 1000 8 2250*1350*1420 1585 DFSJYC 1.0-10 2100*1200 1000 10 2250*1350*1530 1700 DFSJYC 1.0-12 2550*1530 1000 12 2796*1670*1750 2560 DFSJYC1.0-14 2812*1600 1000 14 3067*1810*1900 3230 DFSJYC 1.5-6 2100*1530 1500 6 2250*1750*1530 1780 DFSJYC 1.5-8 2100*1530 1500 8 2250*1750*1690 2070 DFSJYC 1.5-10 2100*1530 1500 10 2250*1750*1850 2250 DFSJYC 1.5-12 2550*1530 1500 12 2796*1762*1850 2900 DFSJYC 1.5-14 2816*1600 1500 14 3045*1852*1960 3400 DFSJYC 2.0-6 2100*1530 2000 6 2250*1750*1530 1780 DFSJYC 2.0-8 2100*1530 2000 8 2250*1750*1690 2070 DFSJYC2.0-10 2100*1530 2000 10 2250*1750*1850 2250 DFSJYC 2.0-12 2550*1600 2000 12 2796*1852*1954 3200 DFSJYC2.0-14 2816*1600 2000 14 3067*1852*2230 3900 DFSJYC 03A 1150*700 240 3 1300*760*1950 545 DFSJYC 03 1280*700 240 3 1440*760*1830 535 DFSJYC 04 1280*700 240 4 1440*760*1950 590

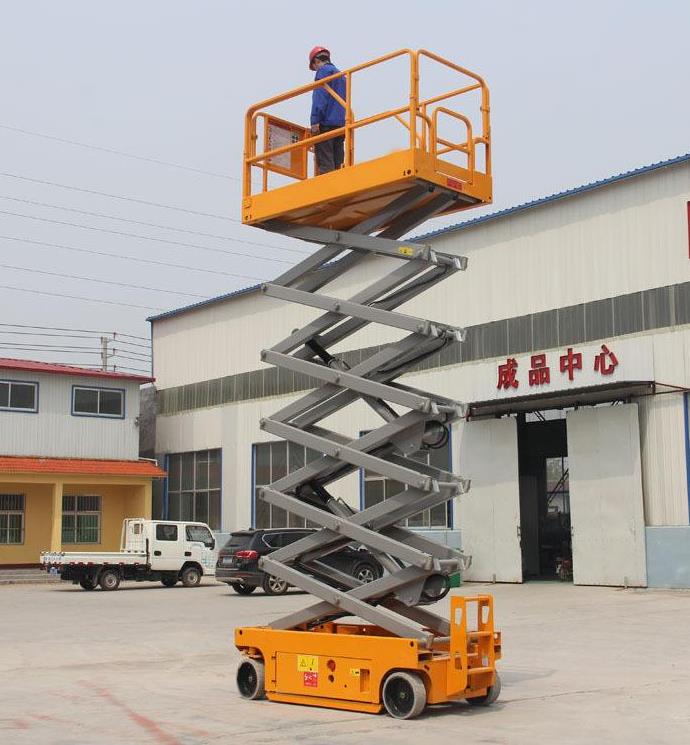

Self-propelled mobile scissor lift Dealer
Capacity: 230-320kg
Lifting height: 6-12m
Driving mode: hydraulic drive
Power supply: Electric power
Travel methods: Self-propelled mobile scissor lift
Self-propelled mobile scissor lift is a self-propelled high-altitude work platform, self-propelled mobile scissor lift has the function of automatic walking, can in different working states, fast, slow walking, only one person can operate in the air to complete up and down, forward, backward, turn and other movements. Self-propelled mobile scissor lift, it has the function of automatic walking, can in different working conditions, fast, slow walking, just one person can continuously complete up and down in the air, forward, backward, turn and other movements. Especially suitable for airport terminal building, station, wharf, shopping malls, sports venues, residential properties, factories and mining workshops and other large range of operations.
Self-propelled mobile scissor lift has one year warranty, key parts warranty five years, suitable for factory workshop the lobby at the airport, square, park, etc have the work high above the needs of customers.
Electric wheel drive Platform size(m) Capacity (kg) Lifting height (m) Overall size(m) Telescopic platform(m) Weight(kg) GTJZD-6 2.26*1.13 230 6 2.47*1.17*2.29 0.9 1900 GTJZD-8 2.26*1.13 230 8 2.47*1.17*2.31 0.9 2060 GTJZD-10 2.26*1.13 230 10 2.47*1.17*2.43 0.9 2300 GTJZD-10 2.26*1.13 320 10 2.47*1.17*2.43 0.9 2730 GTJZD-12 2.26*1.13 230 11.8 2.47*1.17*2.55 0.9 2460 GTJZD-12 2.26*1.13 320 11.8 2.47*1.17*2.55 0.9 2860

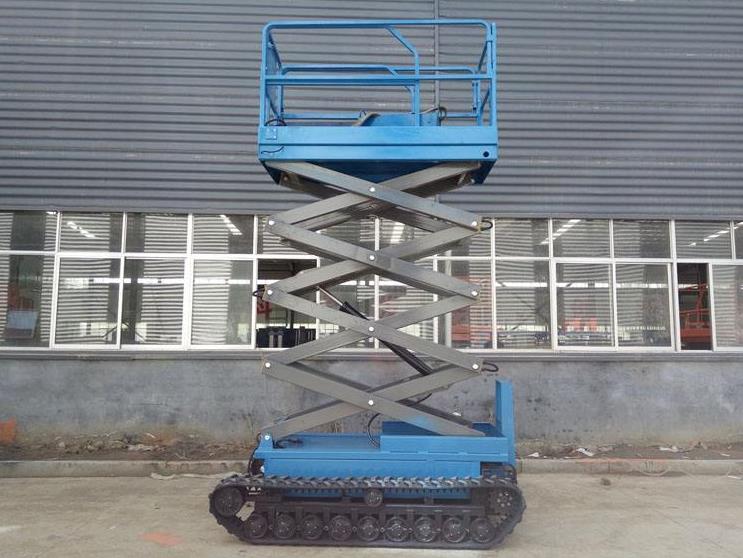

Crawler mobile scissor lift
Capacity: 300kg
Lifting height: 6-10m
Driving mode: hydraulic drive
Power supply: diesel oil
Travel methods: Electric power
Fully self-propelled (self-walking) crawler mobile scissor lift is a multi-functional aerial working equipment. Crawler mobile scissor lift heights range from 4 m to more than 12 m; Crawler mobile scissor lift advantages can be applied to all kinds of complicated roads, such as snow, muddy roads, potholed roads. Strong ability to adapt to the environment, can be in the field without power supply, potholes and complex conditions under the conditions of high-altitude work. Crawler mobile scissor lift can be customized according to personal requirements of different heights, different loads of s Crawler mobile scissor lift.
DFLIFT crawler mobile scissor lift itself is the latest research and development of new type self-propelled shear fork lifter, its advantages can apply all kinds of complex pavement, can lift a lift platform of aerial work, strong ability to adapt, can be in the field under the condition of no power, potholed road and its complex situations in aerial work.
Crawler mobile scissor lifts, equipment chassis is aggravating, selection of diesel engine driven elevator, lifting power battery control equipment, mesa is equipped with the rise and fall control button to lift platform operation, also can use the rise and fall of elevator diesel engine as a driving force, by manual hydraulic lever control the rise and fall of the elevator.
Model Platform size(m) Overall dimension(m) Lifting height(m) Lifting capacity(kg) Extension size(m) Self-weight(kg) DFLD06 2.26*0.81 2.655*1.35*2.33 6 300 0.9 2750 DFLD08 2.26*0.81 2.655*1.35*2.48 8 300 0.9 2880 DFLD10 2.26*0.81 2.655*1.35*2.61 10 300 0.9 3020
Why choose us：
Mobile scissor lift can be selected as two-phase, three-phase, battery, diesel engine as lifting power, special places can also choose explosion-proof motor, electrical appliances, etc for sale. The control mode of the mobile scissor lift is electric up and down control, manual, electric or remote control, can still be used when power failure. The series of lifts have the characteristics of flexible movement, stable lifting, large load, easy operation and so on, the mobile scissor lift are widely used in factories, grain depots, airports, gas stations, organs, yard heads, field electric power, street lamp maintenance and building decoration and other industries. Mobile scissor lift can be designed and manufactured according to user's requirements.
Advantages：
- The surface of the whole machine is shot blasting, and 2 bottom and 2 sides are sprayed with paint.
- The shear fork adopts Q345B high strength manganese steel rectangular pipe.
- Removable guardrail is inserted in the working platform, which is convenient for disassembly, can reduce storage space and facilitate access to places with high restrictions.
- Four telescopic support legs are installed on the chassis to effectively ensure the stability of the platform when in use.
- The electrical control box is designed to prevent rain, which can be safely used outdoors.
- The driving wheel is equipped with two small wheels on both sides to balance and prevent leaning when turning.
- The application of can-bus technology can greatly reduce the number of wiring harnesses in the vehicle, and the reduction of wiring harnesses greatly reduces the possibility of failure;
- Electro-hydraulic proportional control can adjust hydraulic parameters according to the electric input signal to achieve fast, stable and accurate control of the lifting of equipment;
- The suction cup type leveling outrigger and the level indicator always provide the platform with solid and steady ground support, even on slightly uneven ground;
- The dual-stroke switch limit of platform and cylinder piston provides double guarantee for raising the limit, and the platform is very stable when it reaches the point;
- Open the emergency descending device when power is lost unexpectedly, and the platform will slowly descend; The high pressure steel tubing can withstand the pressure far more than the hydraulic system pressure, which guarantees the safety of the tubing.
- Inching control of lifting, the lifting can be controlled from top to bottom of the platform;
- Emergency stop buttons are installed on and below the working platform to ensure personnel safety;
- The system is equipped with an emergency descending valve, which can be used to safely lower the platform in case of sudden power failure
