DFLIFTS 1t scissor lift as high operating equipment, due to its complex working conditions, and connecting with the work under gravity wind resistance leaning motivation factors such as interference, so the power matching and selection is the key. The rise and fall of a DFLIFTS 1 ton scissor lift relies on the scientific and reasonable configuration. At the same time test maker is one of the important indexes of soft power. DFLIFTS 1 ton scissor lift is widely applied in cinema multi-function hall hall studios, cultural and sports venues such as lift platform equipment, can also according to the need to splice steps, site, the multistage ladder of DFLIFTS 1 ton scissor lift, can be in the range at different stages, feature-rich stage effect.

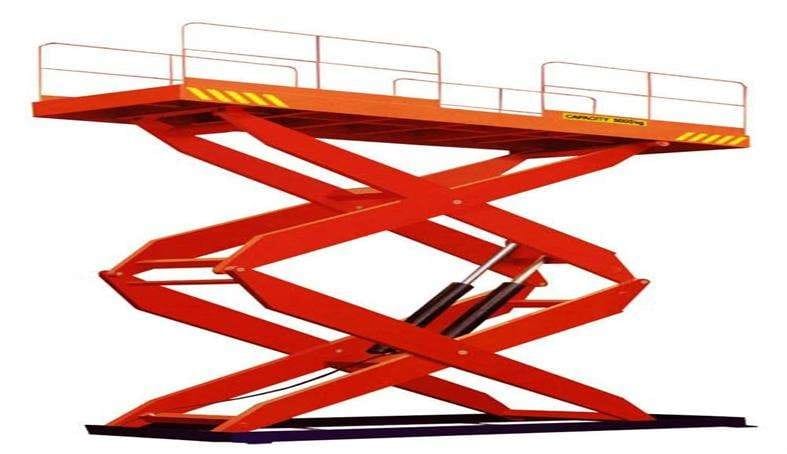

1ton stationary scissor lift
Rated lifting weight: 100 kg-30 ton
Lifting height: 500 mm (0.5 m)-8000 mm (8 m)
Table size: customizable
Power supply: 110~550V three-phase
1 ton stationary scissor lift is used for the building between the floors of goods transport special hydraulic lift products mainly with a variety of work between the goods up and down transport. Vertical garage and underground garage floor height 1 ton stationary scissor lift is used for building each floor height transport goods between the special lifting platform, products mainly by the working floor of the goods elevator up and down. The hydraulic system of car transportation and other products, such as three-dimensional garage and underground garage, is equipped with anti-falling and overload safety protection device. In addition, the operation button can be set on each floor and lift table to realize multi-point control.
Model Lift height/m Lift capacity/kg Platform size/mm SJG2.5-3 3 2500 5200*2600 SJG2-6.5 6.5 2000 5200*2800 SJG2.5-3.5 3.5 2500 5200*2600 SJG2.5-5 5 2500 5600*3000 SJG3-2.5 2.5 3000 5000*2300 SJG3-3.5 3.5 3000 5600*2700 SJG5-10 10 5000 4500*2500 SJG8-2.5 8 2500 6500*4500 SJG12-3 12 3000 5500*2800 SJG15-4.5 15 4500 8000*2200 SJG20-5 20 5000 6000*3000 The hydraulic scissor car lift can be customized as your detailed size

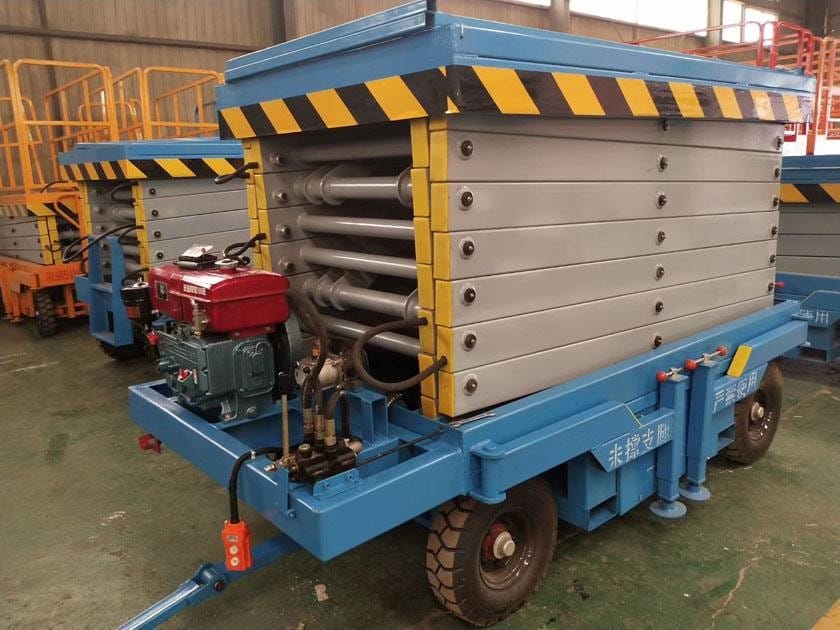

Electric drive mobile 1T scissor lift
Rated Loading Capacity：1ton
Max. Lifting Height: 6m
Voltage:
220V/380V/battery/Fuel oil machine
Customizable area:
Power/height/load/work station/color
Electric drive mobile 1t scissor lift is widely used for aerial work equipment. Mechanical structure of Electric drive mobile 1t scissor lift, make the lifting platform lifting has high stability, and the work platform and high bearing capacity, make the work high above the larger and suitable people work together. Lifting power is divided into 24 v, 220 v or 380 v power supply, diesel engine, choose Italy and domestic hydraulic pump station, mesa use antiskid insulated gusset plate, with non-slip, insulation safety, please be assured that use.
Type Platform size（mm） Capacity（kg） Lifting height（m） Overall size（mm） Weight （kg） DFSJY0.5-6 2100*830 500 6 2250*950*1200 880 DFSJY 0.5-7 2100*830 500 6.8 2250*950*1280 970 DFSJY 0.5-8 2100*930 500 8 2250*1060*1380 1050 DFSJY 0.5-9 2100*930 500 9 2250*1060*1500 1165 DFSJY 0.5-10 2100*1230 500 10 2250*1350*1530 1360 DFSJY 0.5-11 2100*1230 500 11 2250*1350*1650 1400 DFSJY 0.5-12 2550*1530 500 12 2796*1670*1750 2260 DFSJY 0.5-14 2812*1530 500 14 3067*1730*1810 2486 DFSJY 0.3-16 2812*1600 300 16 3067*1810*2080 3063 DFSJY 0.3-18 3070*1600 300 18 3321*1810*2080 3900 DFSJY 1.0-4 2100*1200 1000 4 2250*1350*1180 1250 DFSJY 1.0-6 2100*1200 1000 6 2250*1350*1300 1400 DFSJY 1.0-8 2100*1200 1000 8 2250*1350*1420 1585 DFSJY 1.0-10 2100*1200 1000 10 2250*1350*1530 1700 DFSJY 1.0-12 2550*1530 1000 12 2796*1670*1750 2560 DFSJY 1.0-14 2812*1600 1000 14 3067*1810*1900 3230 DFSJY 1.5-6 2100*1530 1500 6 2250*1750*1530 1780 DFSJY 1.5-8 2100*1530 1500 8 2250*1750*1690 2070 DFSJY 1.5-10 2100*1530 1500 10 2250*1750*1850 2250 DFSJY 1.5-12 2550*1530 1500 12 2796*1762*1850 2900 DFSJY 1.5-14 2816*1600 1500 14 3045*1852*1960 3400 DFSJY 2.0-6 2100*1530 2000 6 2250*1750*1530 1780 DFSJY 2.0-8 2100*1530 2000 8 2250*1750*1690 2070 DFSJY 2.0-10 2100*1530 2000 10 2250*1750*1850 2250 DFSJY 2.0-12 2550*1600 2000 12 2796*1852*1954 3200 DFSJY 2.0-14 2816*1600 2000 14 3067*1852*2230 3900 DFSJY 03A 1150*700 240 3 1300*760*1950 545 DFSJY 03 1280*700 240 3 1440*760*1830 535 DFSJY 04 1280*700 240 4 1440*760*1950 590

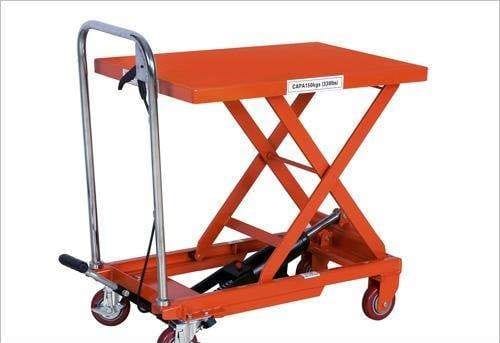

Manual mobile scissor lift 1 ton
Rated Loading Capacity：100kg-2000kg
Max. Lifting Height：3m
Power Source:
Hydraulic AC pump/DF pump electro-hydraulic
Manual lifting
Min. Lifting Height: 415mm
Manual mobile scissor lift 1 ton is a special auxiliary equipment to realize rapid loading and unloading of goods. Manual mobile scissor lift 1 ton heights adjustment function connects with the truck without goods in the warehouse and builds a bridge between forklift handling vehicles. Through manual mobile scissor lift 1 ton, the goods can be loaded and loaded in batches directly inside the vehicle.
Model Platform Size Lifting Range Lifting Capacity L*W*H PT150 700*450*35 210-720mm 150kg PT300 810*500*50 280-900mm 300kg PT500 810*500*50 280-900mm 500kg PT1000 1000*510*55 415-1000mm 1000kg PTS150 700*450*35 305-1260mm 150kg PTS350 905*500*50 350-1300mm 350kg PTS500 905*500*50 360-1500mm 500kg PTS800 1200*610*58 450-1500mm 800kg PTS1000 1200*610*80 500-1700mm 1000kg PTS350 900*700*50 350-1580mm 350kg PTD500 1600*610*80 280-900mm 500kg PTD1000 1200*610*80 380-1000mm 1000kg PTD1500 1200*610*80 380-1000mm 1500kg PTD2000 1200*610*80 380-1000mm 2000kg
Why choose us：
DFLIFTS 1 ton scissor lift can make you reduce labor intensity, and can be doubled handling operation efficiency, speed up the material circulation, to obtain greater economic benefits when hydraulic cargo lift of choose and buy, other factors, such as price configuration is more important. But the customer should first understand 1ton scissor lift service object carrying capacity performance requirements, in order to better choose their own products, please note that from the overall comparison: including 1ton scissor lift of the cost of procurement of civil use and after-sales cost total cost, the customer must comprehensive comparison.
